INSTALLATION INSTRUCTIONS
IMPORTANT
Please read this information carefully before proceeding. It is the user¨s responsibility to take the following precautions at all times.
-
The portable gazebo, canopy, carport or greenhouse (hereafter canopy) are designed for use as a temporary structure that assembles in minutes without tools.
- After construction the portable canopy must be securely anchored to prevent damage caused by wind.
- We suggest your insurance carrier for notification just as you would for any other outside structure.
-
Canopy MUST NOT be left up in high winds, storms or snows. If severe winds are expected, please remove the cover and sidewalls from the frame to prevent damage.
General Assembly Rules
Although the canopy/greenhouse/carport have different design, style, and size, there is curtain general rules to install them in minutes. Assembly is easiest if you follow the rules properly.
1. TOP FRAME ASSEMBLY
-
Place all corners and top pipes on the ground
-
Connect pipes together to make the top structure
2. ATTACHING COVER
-
Unfold the cover, put cover on the top frame.
-
Attach velcro strap and elastic ball strap
3. PUTTING LEGS ON CANOPY FRAME
-
Insert middle legs and end legs
-
Put feet on the end legs
-
Install anchor kits
4. ATTACHING SIDEWALLS
5. INSTALL ANCHORS --IMPORTANT!!!
BEFORE OPEN THE RELEVANT INSTRUCTION MANUAL, PLEASE READ THE CAUTION TERMS ON THE BOTTOM.
All the instruction below need Adobe® Reader® to read, you may download it here.
Awning
Carport
GM1101 10'x20' Portable Carport GM1102 10'x10' Portable Carport
GM1103 10'x20' Portable Carport
Easy Up Gazebo

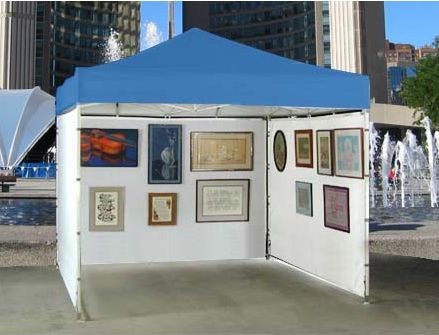

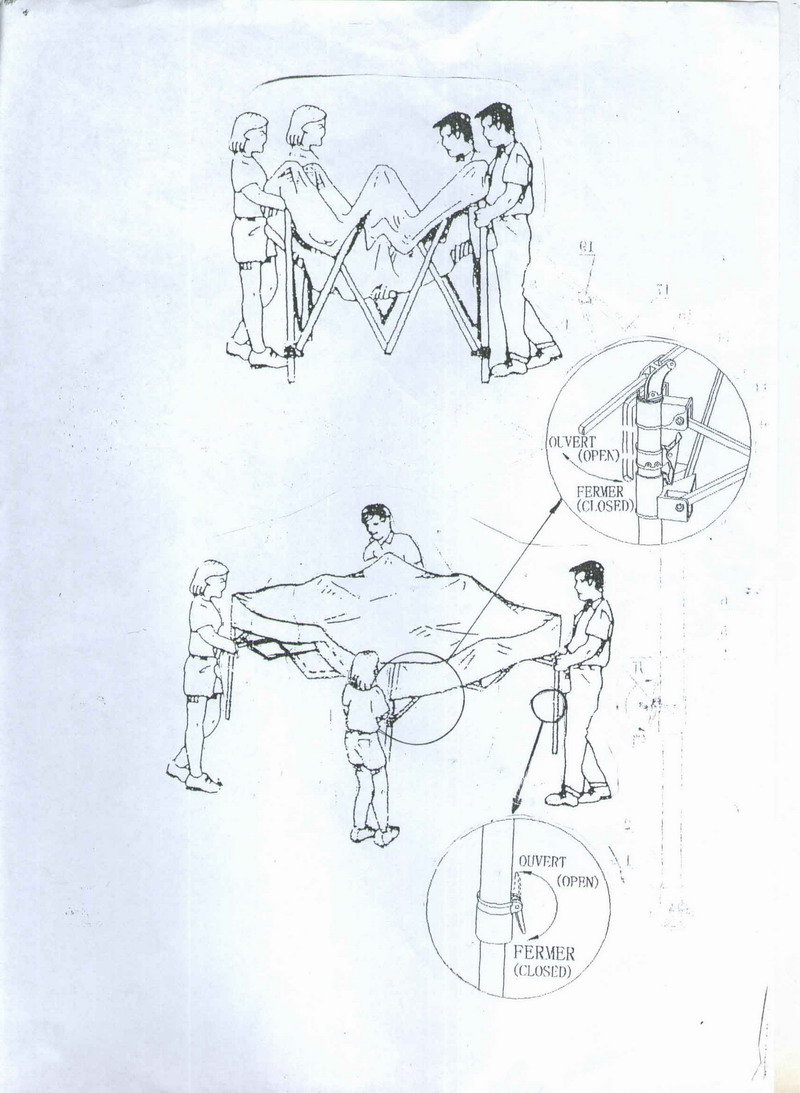

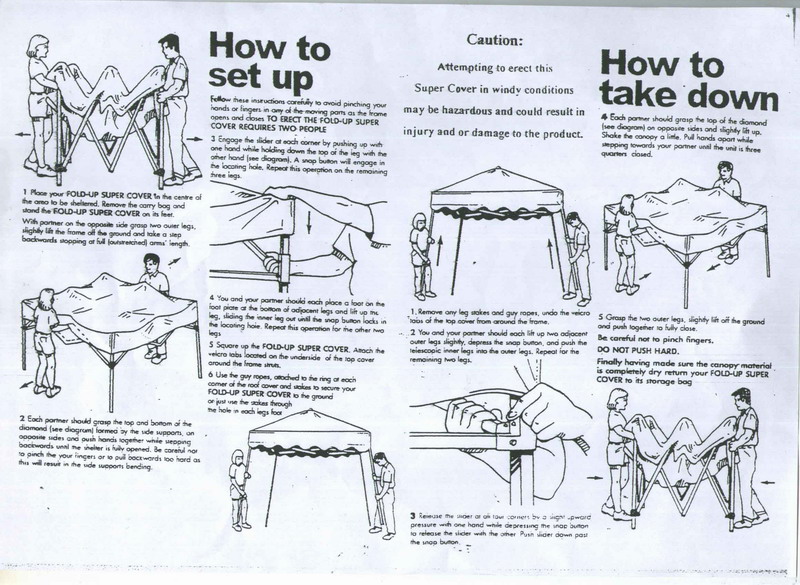

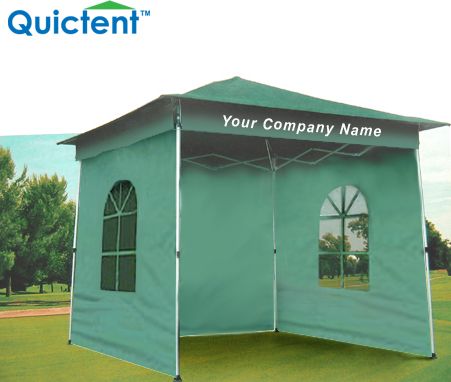

HD001A 10'x10 EZ Set Up Gazebo HD1043, H001B, H003A, H006A
Gazebo/Canopy

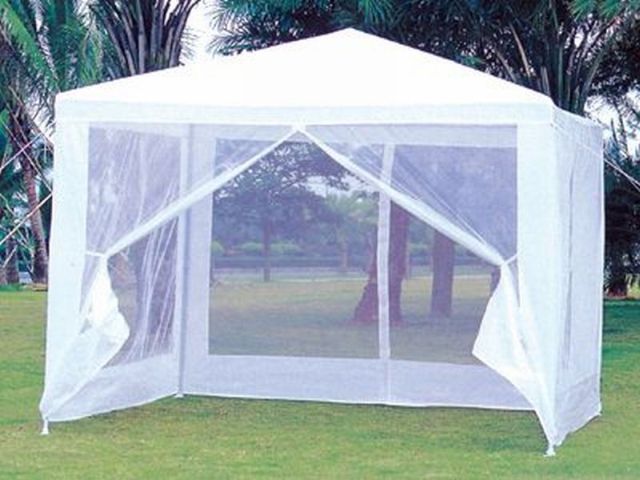

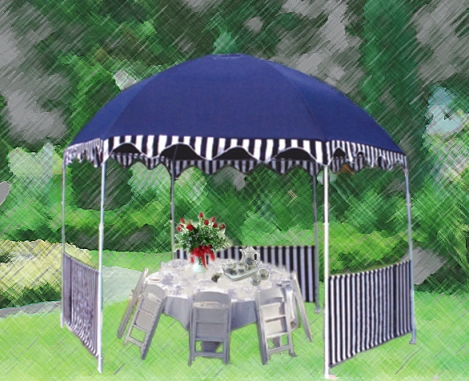

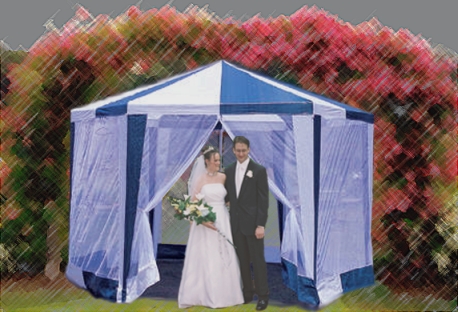

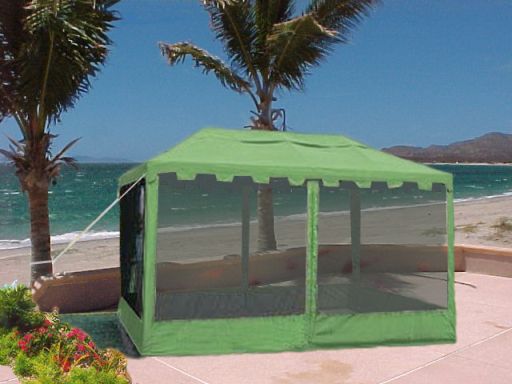

HD1001 Hexagon Gazebo HD1007 10'x10' Gazebo
HD1010 Round Gazebo HD1027 10'x13' Gazebo

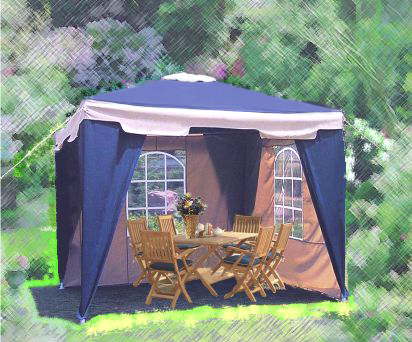

HD1031 10'x10' Gazebo
Greenhouse

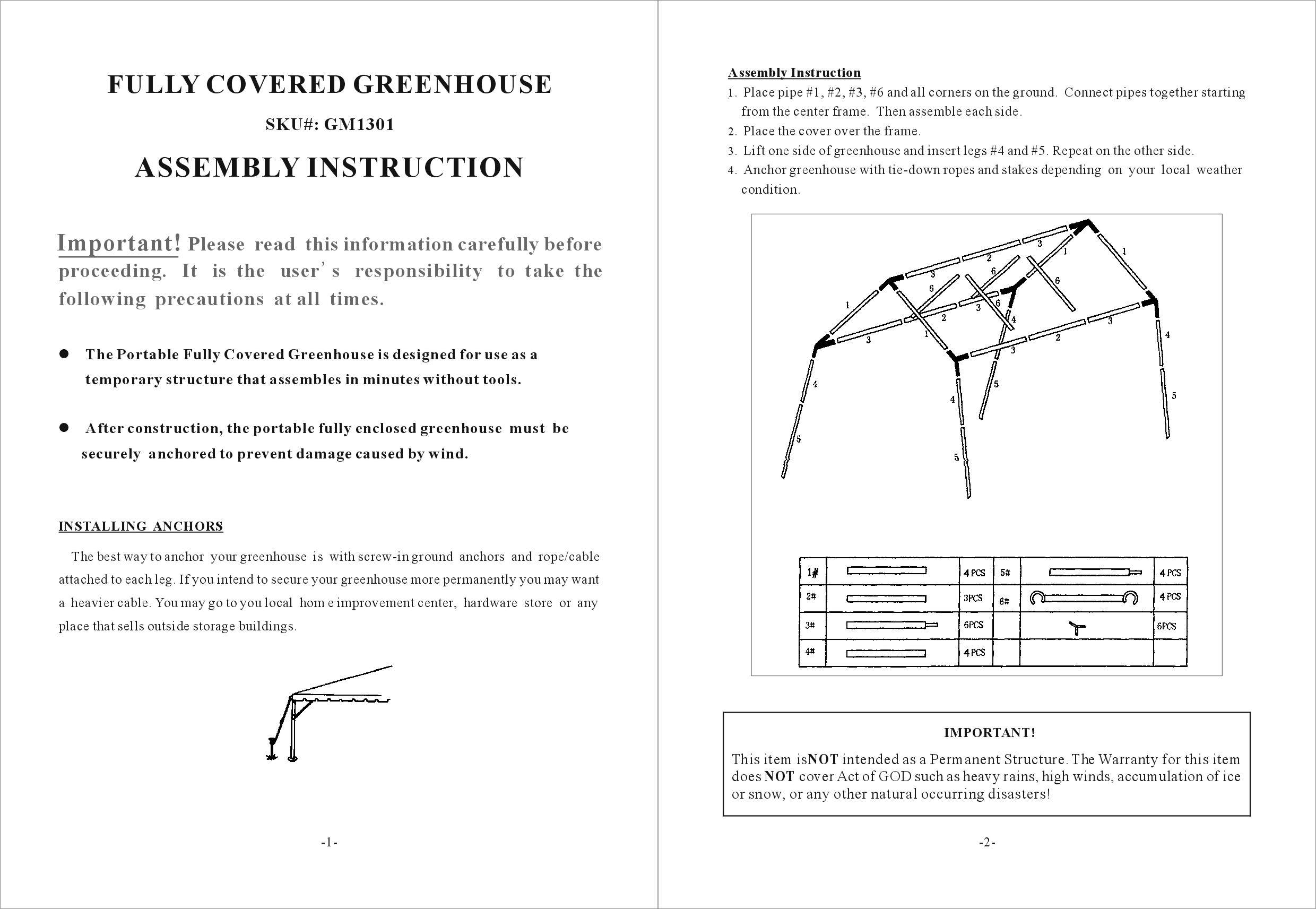

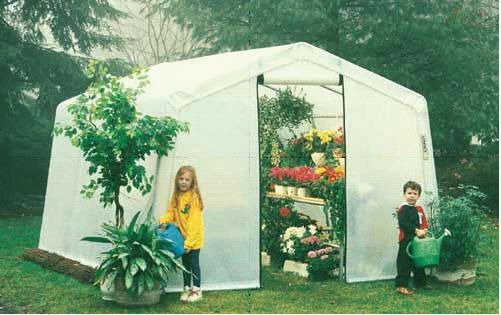

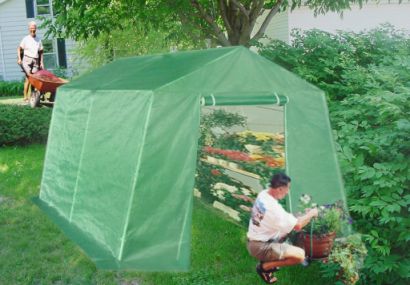

HDGH 12'x12' Greenhouse GM1301Greenhouse

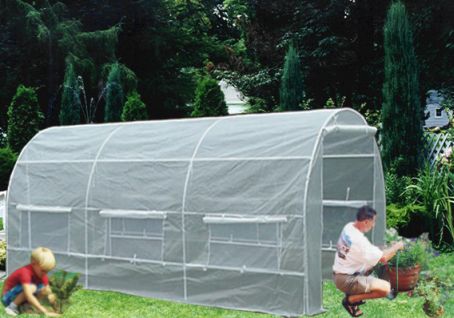

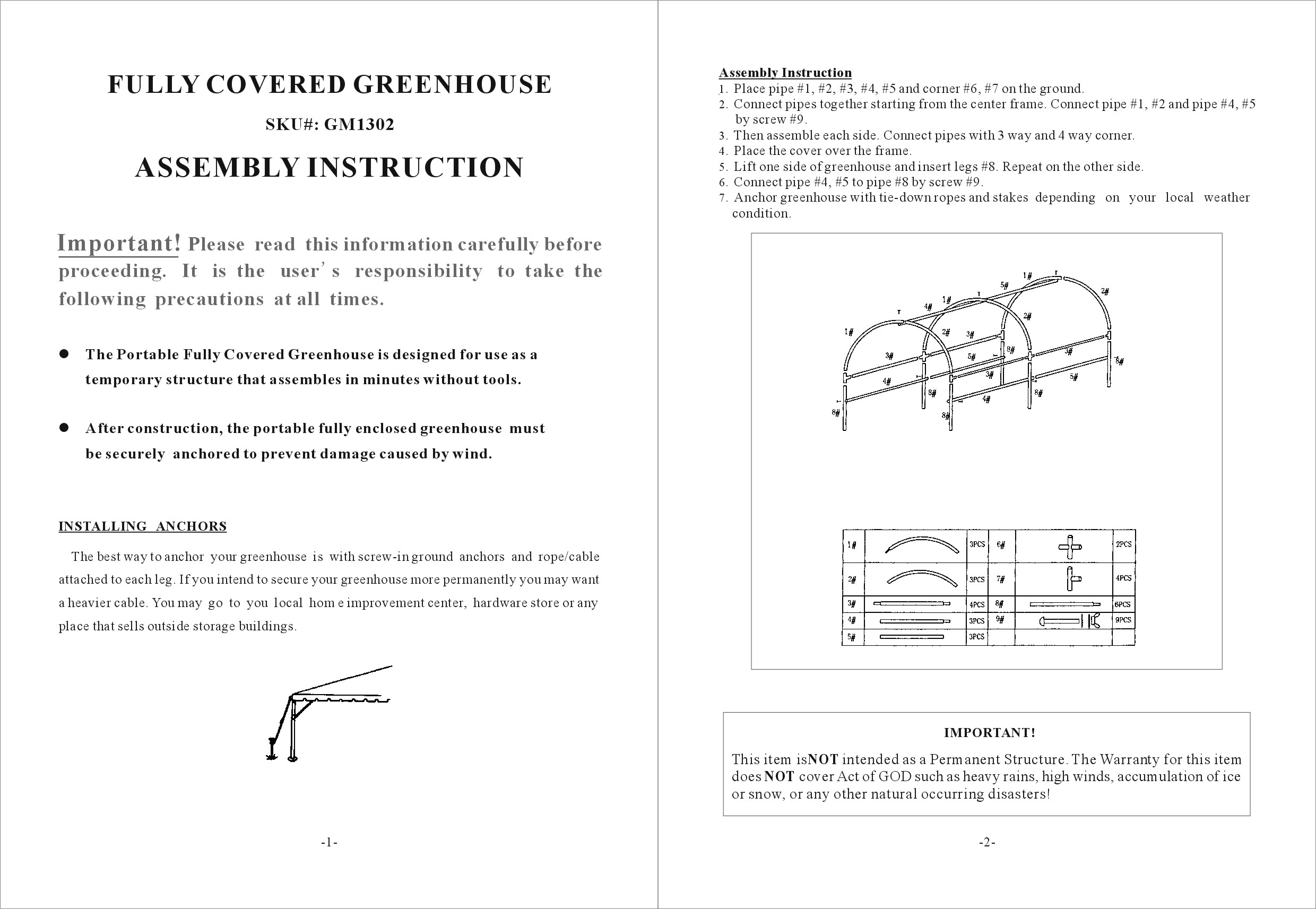

GM1302 Greenhouse GM1303 Greenhouse
Hammock&Stand

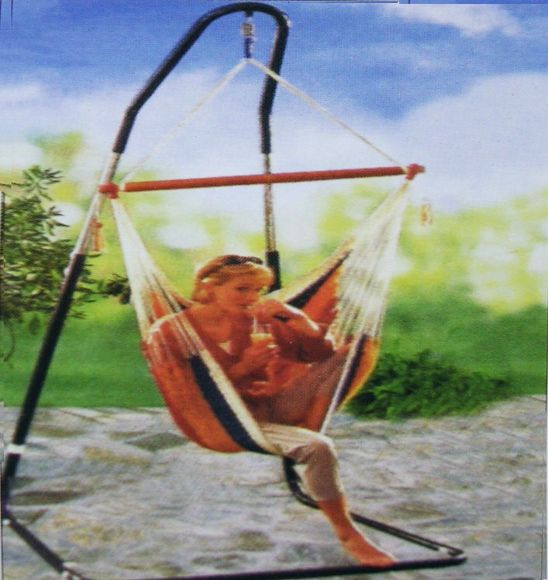

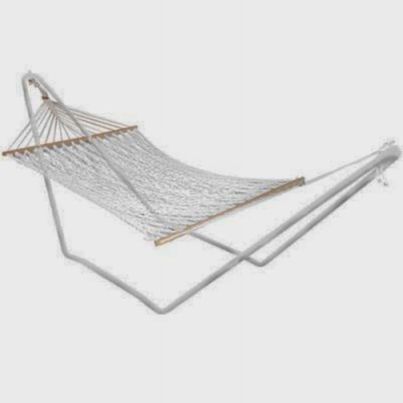

HD3009 Hammock Chair & Stand HD3006 Hammock & Stand
Party Tent

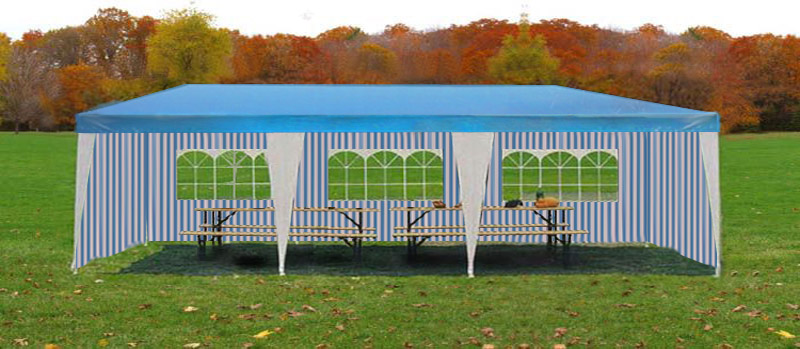

HD2011 10'x30' Portable Party Tent HD2008 10'x20' Portable Party Tent
Show Display Equipment
ANCHOR KIT IS NOT INCLUDED WITH CANOPY/PARTY TENT/GREENHOUSE/CARPORT (Hereafter canopy)
Do not erect canopy on windy days without necessary anchor otherwise possible injury may occur. Canopy is not designed for storm or hold snow load.
All canopies are designed for use as a temporary structure that assembles in minutes. After construction the canopy must be anchored to prevent damage against winds. If the canopy is not anchored, severe winds will cause the frame to flex and unanchored legs will fall collapsing the canopy. If severe winds (over 40mph) are expected, please remove the cover from the frame to prevent damage.
The best way to anchor your canopy or (tent/greenhouse/carport) is with screw-in ground anchors and rope/cable attached to each leg. If you intend to secure your canopy more permanently you may want to a heavier cable. You may go to you local home improvement center, hardware store or any place that sells outside storage buildings.
If your canopy rests on concrete, canopy feet will work. The are made of steel tubing with a plate welded on the bottom. There are holes drilled into the plate for easier bolting to the concrete. With screw-in anchors and rope and rope/cable are not used, all legs need to be bolted into the fitting at the top of each leg.
INSTRUCTIONS OH INSTALLING ANCHORS
1. Measure out from each leg at least 36''
2. Screw anchor into ground. Leave about 2 inches between the ground and the eye on each anchor.
3. Tie rope/cable around fitting on the top of each leg.
4. Tie other end of rope/cable to the anchor and pull tight.
5. Screw anchor until the bottom of the eye is flush with the ground. This will make the rope/cable tighter.
6. Check and tighten rope frequently.
examples on making anchor
examples on making weights
1. For each Installation, the
Installer is solely responsible for evaluating the site and the proper
securing method determined. Some soils require different staking
or securing than that provided with the tent. Due to this
variety of soil conditions, these are the manufacturer's suggested sequence
of Installation procedures. OutdoorEdge's responsibility is limited to the
construction of the tent. We are not responsible for methods that Installers
may choose to secure the tent to the ground.
2. Inasmuch as the weather Is unpredictable, good judgment and common
sense must be Incorporated within Installation guidelines. It Is the
responsibility of the tent Installer/maintainer to determine the severity of
the weather, proper time and method of installation and for erection and
disassembly. This product has been manufactured for use as a temporary
structure. For the safety of all occupants, evacuation Is
recommended if threatening weather occurs, or it there is any doubt
concerning the safe use of this product.
3. Proper safety equipment should be used at all times to ensure a
safe Installation and take down. We suggest a careful evaluation be made to
determine safety equipment needed, such as had hats, steel toe shoes, safety
glasses and other as required.
4. WARNING: Do not have fire or open flame close to the fabric. Do not use your barbecue grill under the shade structure.
5. Disclaimer -- OutdoorEdge disclaims and excludes all express
or implied warranties of merchantability and fitness for a particular
purpose. The product is brand new and sold "as is" and no warranty shall
apply. The user shall determine the suitability of the product for the
intended use and assumes all risk and liability. OutdoorEdge
shall not be liable In tort or in contract for any loss or damage, direct,
incidental or consequential arising out of the use of or the inability to
use the product.
©2004 Outdoor Edge® All Rights Reserved
